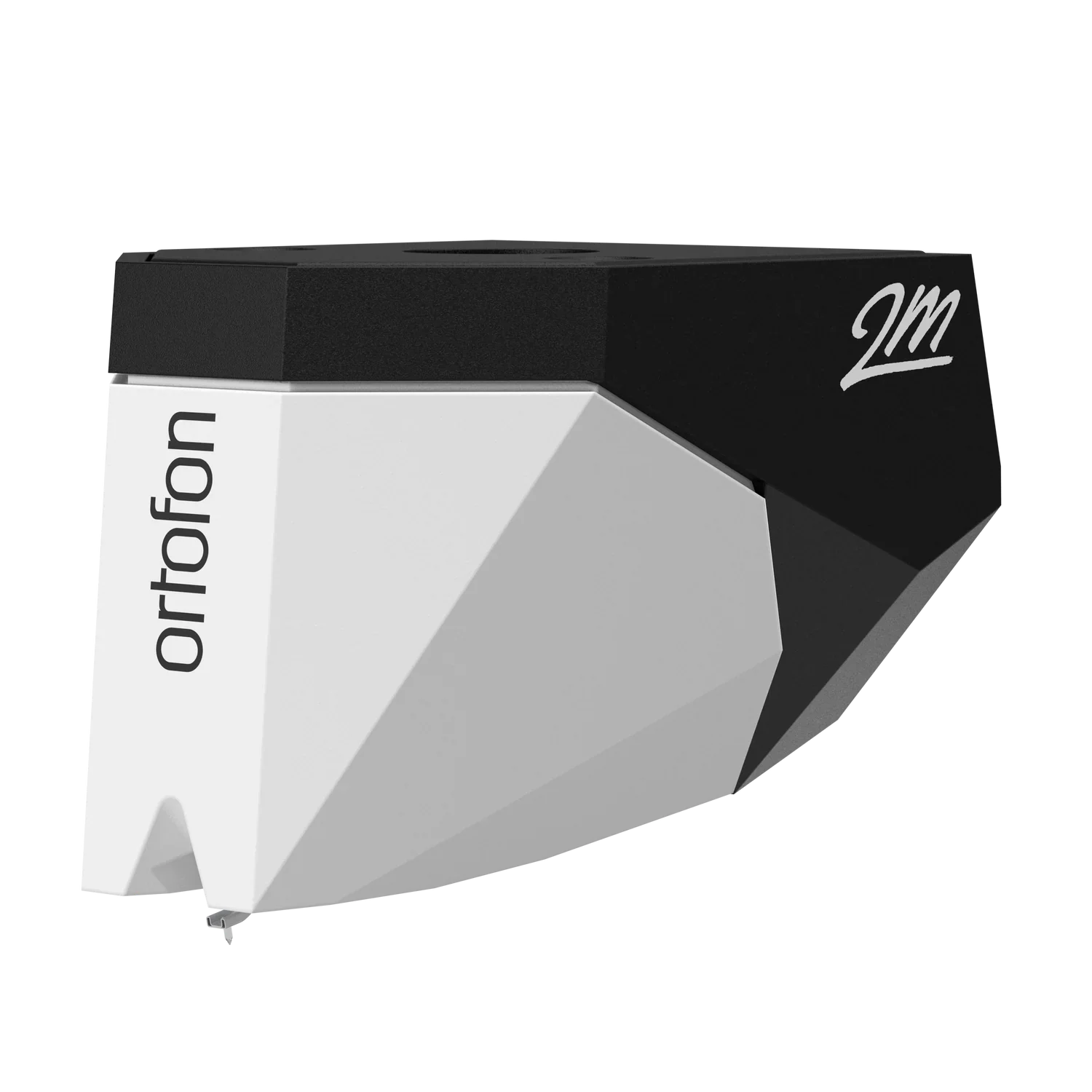

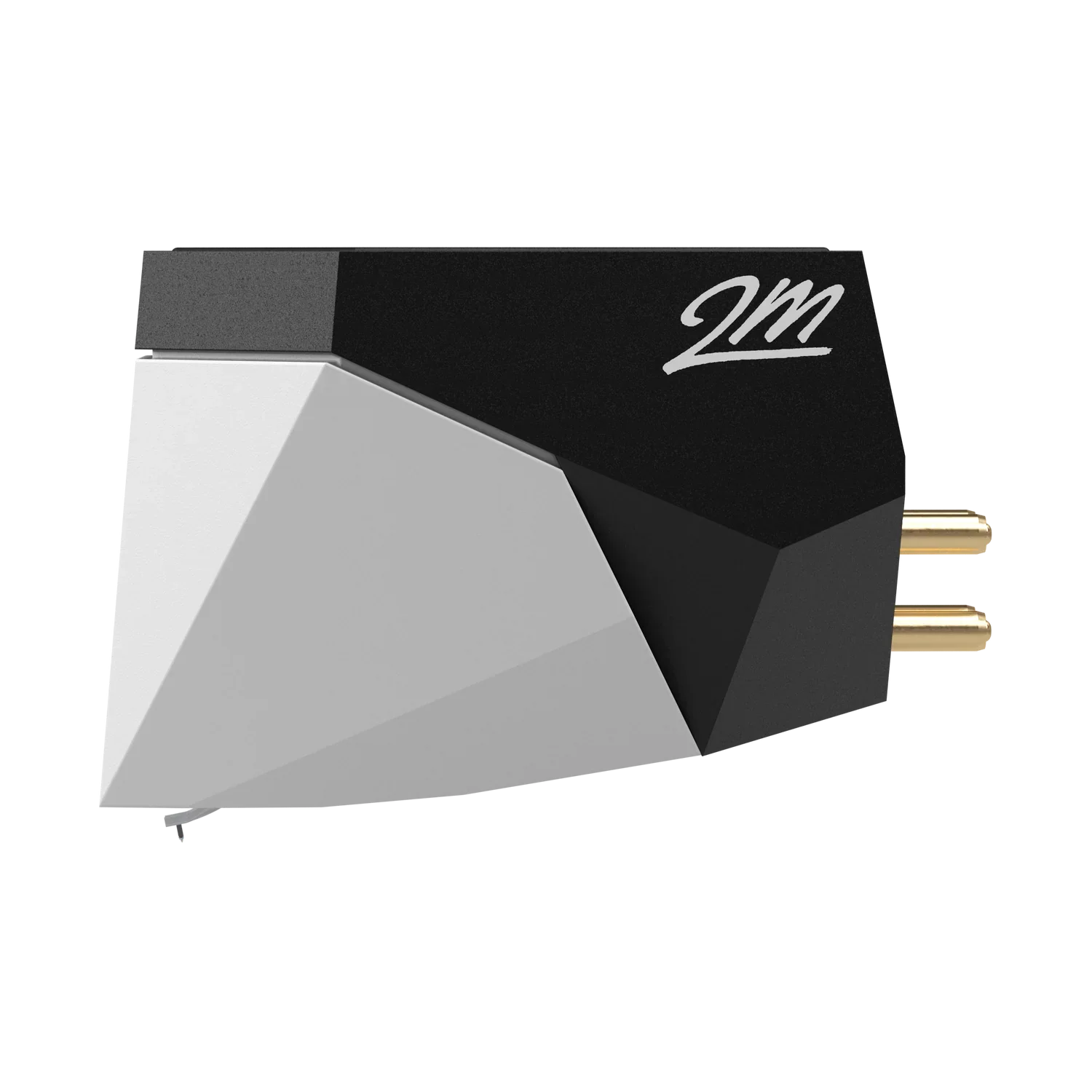

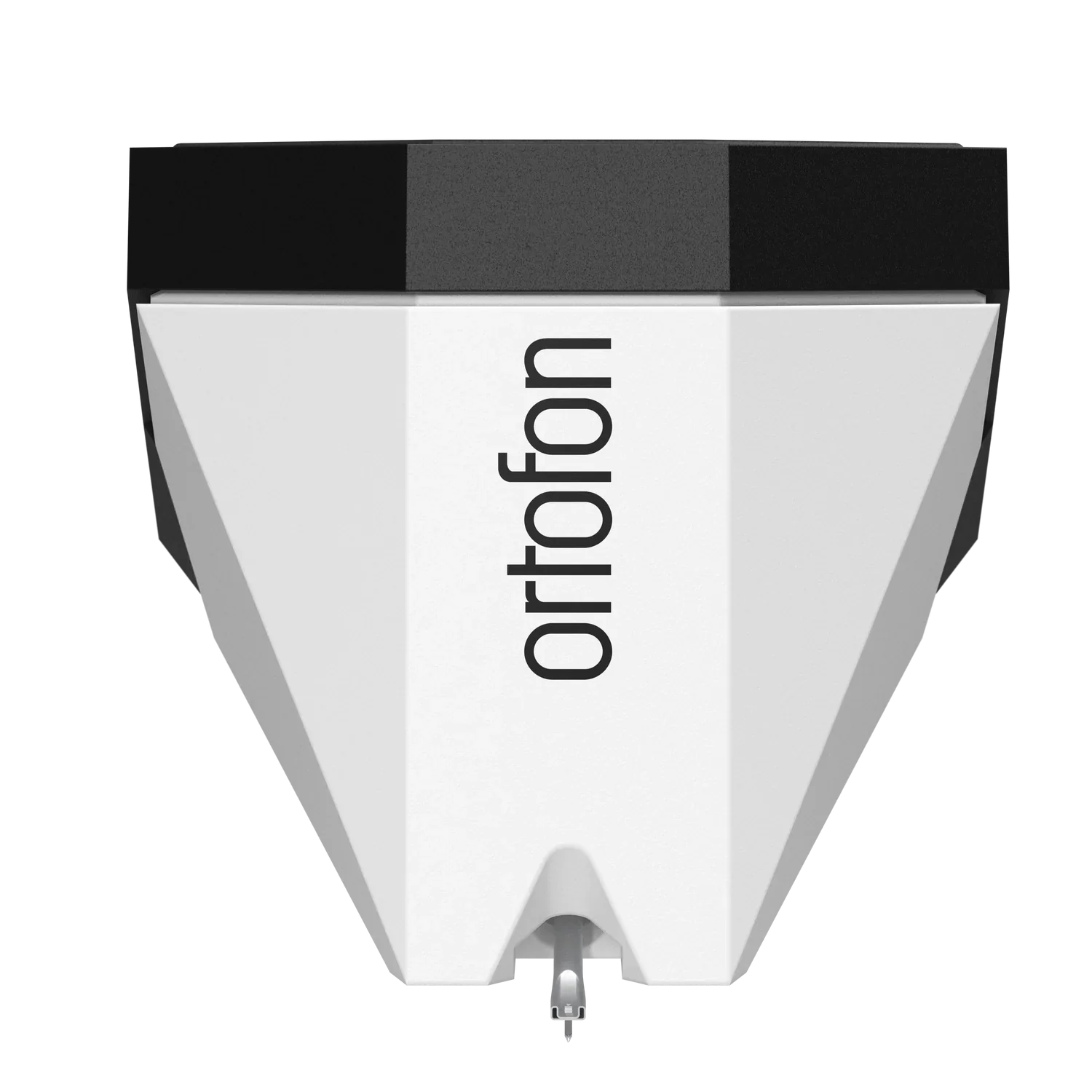

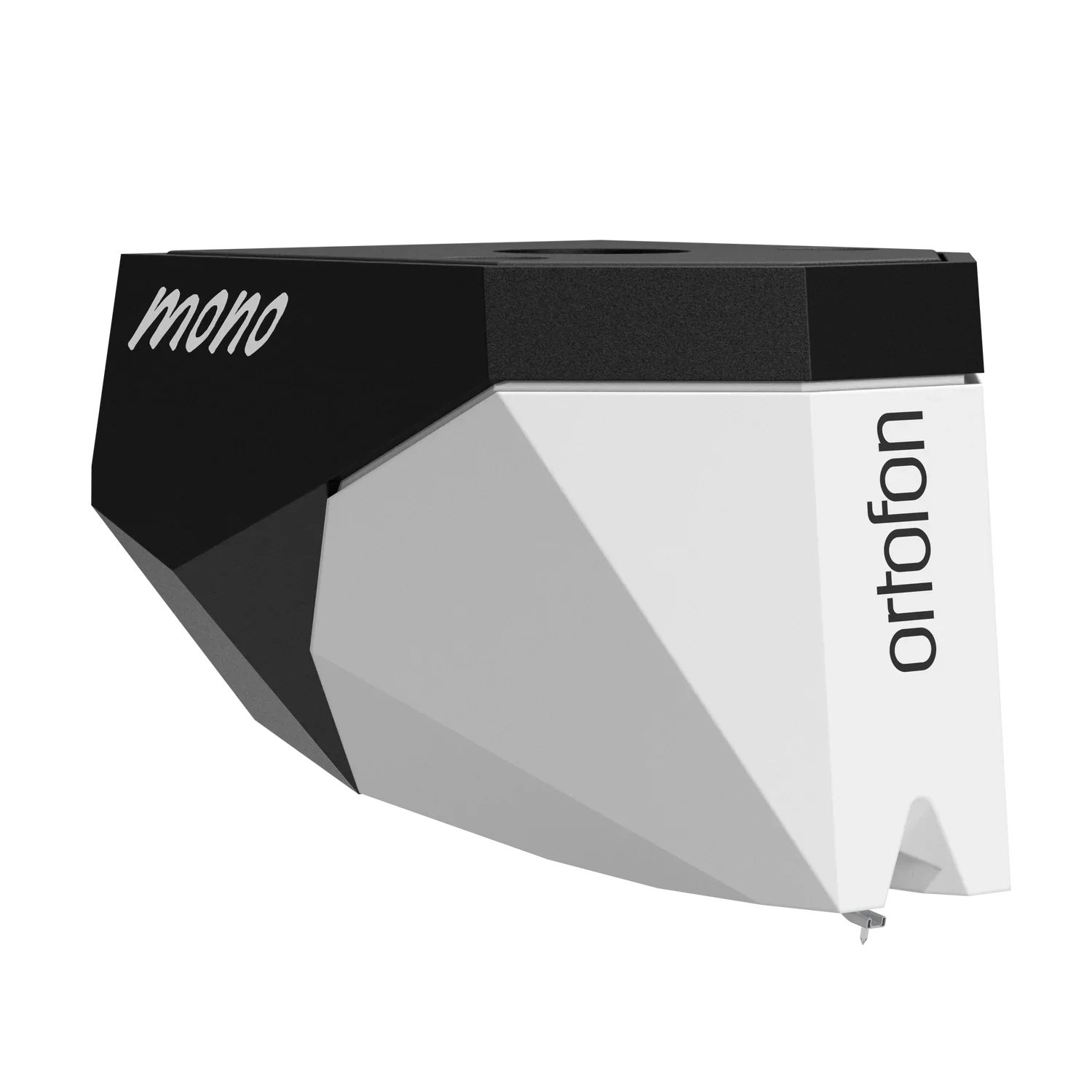

Ortofon 2M Mono Cartridge

Product image 1
1 / 4

Ortofon 2M Mono Cartridge

Step into an Era of Authenticity with the 2M Mono Cartridge, thoughtfully crafted to perfectly suit the intricacies of playing mono microgroove LP vinyl records. Immerse yourself in the authentic nostalgia of mono vinyl records brought to life with the 2M Mono.



Specifications


Output voltage at 1 kHz, 5cm/sec
4 mV
Frequency response 20 Hz - 20 kHz
3 / - 1 dB
Tracking ability at 315 Hz
70 µm
Compliance, dynamic, lateral
18 µm/mN
Cantilever material
 Aluminium
Stylus type
Nude Spherical
Stylus tip radius
R18 µm
Tracking force range
1.6-2.0 g (16-20 mN)
Tracking force, recommended
1.8 g (18 mN)
Tracking angle
20°
Internal impedance, DC resistance
700 Ohm
Cartridge colour
Black/White
Cartridge weightf
7.2 g
Premounted cartridge weight
16.7 g
Recommended load resistance
47 kOhm
Internal inductance
350 mH
Recommended load capacitance
150-300 pF





Step into an Era of Authenticity with the 2M Mono Cartridge, thoughtfully crafted to perfectly suit the intricacies of playing mono microgroove LP vinyl records. Immerse yourself in the authentic nostalgia of mono vinyl records brought to life with the 2M Mono.



Specifications


Output voltage at 1 kHz, 5cm/sec
4 mV
Frequency response 20 Hz - 20 kHz
3 / - 1 dB
Tracking ability at 315 Hz
70 µm
Compliance, dynamic, lateral
18 µm/mN
Cantilever material
 Aluminium
Stylus type
Nude Spherical
Stylus tip radius
R18 µm
Tracking force range
1.6-2.0 g (16-20 mN)
Tracking force, recommended
1.8 g (18 mN)
Tracking angle
20°
Internal impedance, DC resistance
700 Ohm
Cartridge colour
Black/White
Cartridge weightf
7.2 g
Premounted cartridge weight
16.7 g
Recommended load resistance
47 kOhm
Internal inductance
350 mH
Recommended load capacitance
150-300 pF





$292.95
Ortofon 2M Mono Cartridge—
$292.95

Description

Step into an Era of Authenticity with the 2M Mono Cartridge, thoughtfully crafted to perfectly suit the intricacies of playing mono microgroove LP vinyl records. Immerse yourself in the authentic nostalgia of mono vinyl records brought to life with the 2M Mono.



Specifications


Output voltage at 1 kHz, 5cm/sec
4 mV
Frequency response 20 Hz - 20 kHz
3 / - 1 dB
Tracking ability at 315 Hz
70 µm
Compliance, dynamic, lateral
18 µm/mN
Cantilever material
 Aluminium
Stylus type
Nude Spherical
Stylus tip radius
R18 µm
Tracking force range
1.6-2.0 g (16-20 mN)
Tracking force, recommended
1.8 g (18 mN)
Tracking angle
20°
Internal impedance, DC resistance
700 Ohm
Cartridge colour
Black/White
Cartridge weightf
7.2 g
Premounted cartridge weight
16.7 g
Recommended load resistance
47 kOhm
Internal inductance
350 mH
Recommended load capacitance
150-300 pF
